详细说明：

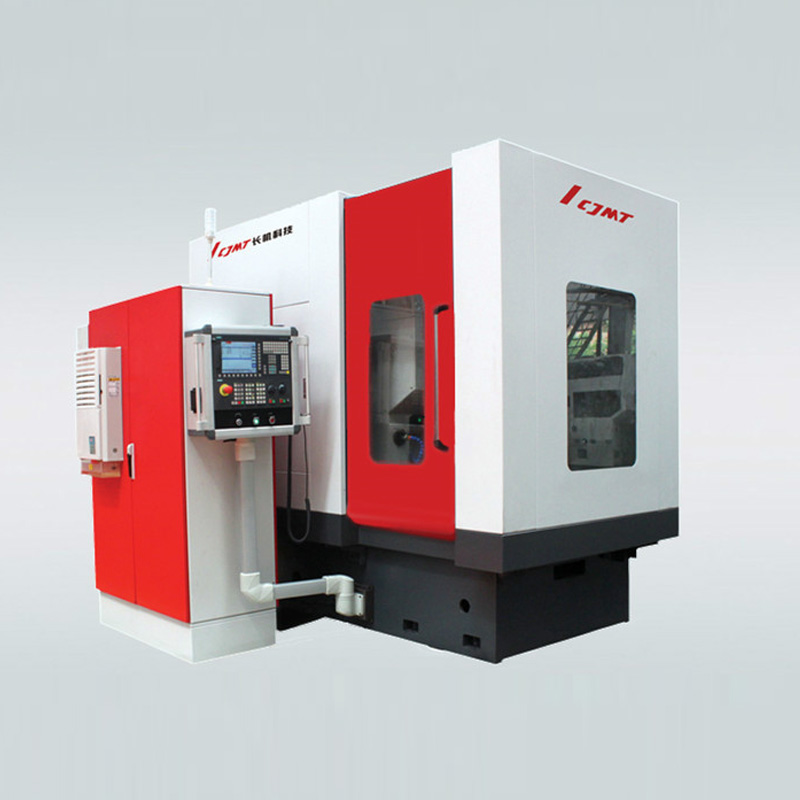

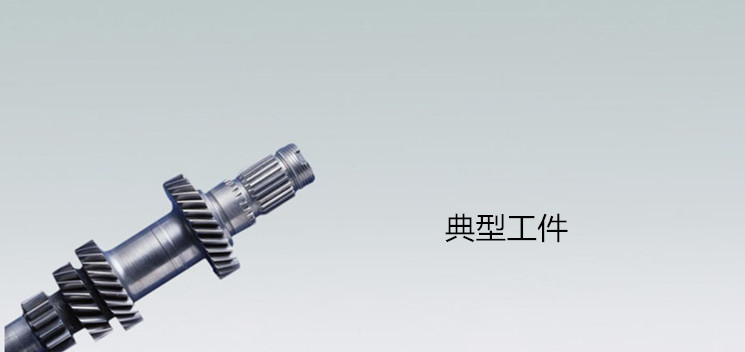

主要用于内、外圆柱齿轮、螺旋齿轮、内矩形花键、端面结合子的切削加工。
1.主运动为交流变频电机驱动，无级调速。
2.径向进给（X轴）和圆周进给(C1\C2轴)采用交流伺服电机驱动。
3.机床具有刀具上停、少齿数切削和斜向让刀功能。
技术参数：
|
主要技术规格 specifications |
YKS5120x3 |
YK5120Bx3 |
YKD5120x3 |
YKS5132x3 |

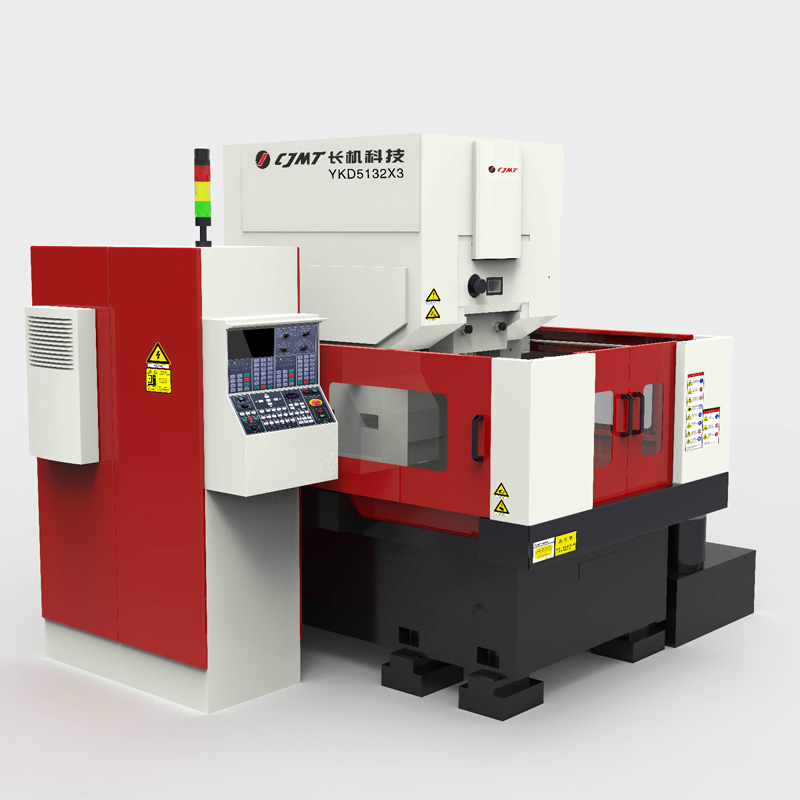

YKD5132x3 |

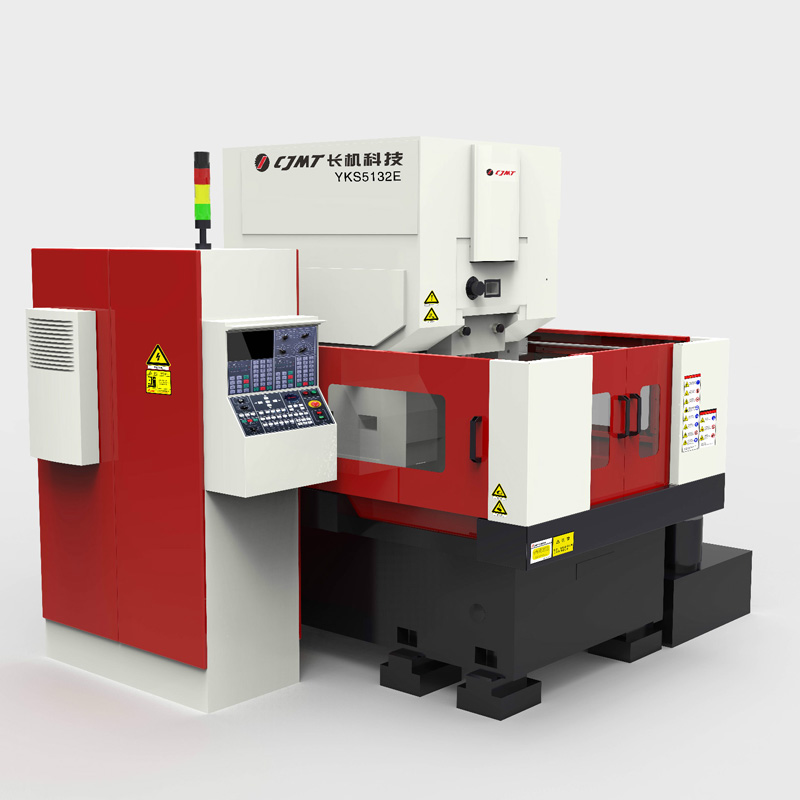

YKS5132E |

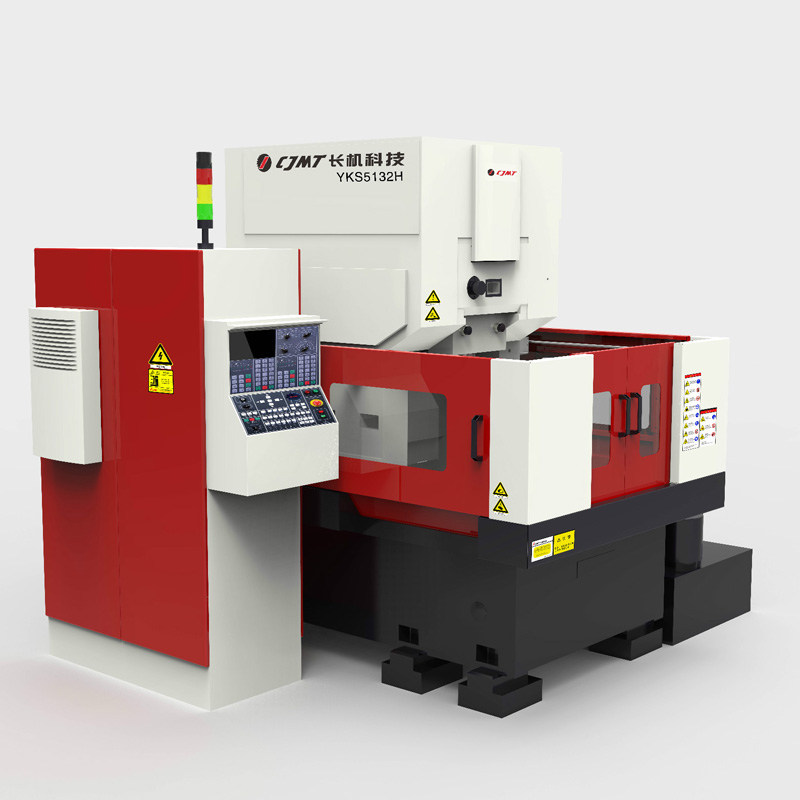

YKS5132H |
|
最大加工直径外齿/内齿 Maximum machining diameter of outer tooth / inner tooth |
200/100+D 刀mm |
320/220+D 刀mm |
|||||
|
最大模数(mm) Maximum modulus (mm) |
6 |
8 |
|||||
|
最大齿宽(mm> Maximum tooth width (mm) |
50 |
90 |
|||||
|
插齿刀冲程长度(mm) Stroke length of gear shaper cutter (mm)
|
60 |
100 |
|||||
|
插齿刀主轴冲程数(str/mim) Stroke number of gear shaper cutter spindle (str/mim) |
125-1250 |
150-2000 |
|||||
|
插齿刀让刀量(mm> Cutter cutter allowance (mm) |
>0.3 |
||||||
|
插齿刀行程位置调整量(mm) Stroke position adjustment of slotting cutter (mm) |
30 |
||||||
|
插齿刀安装轴颈直径(mm) Installing journal diameter of gear shaper cutter(mm) |
31.743 |
||||||
|
插齿机刀轴直径(mm) Cutter shaft diameter (mm) of gear shape |
85 |
||||||
|
工作台面直径(mm) Working table diameter (mm) |
300 |
250 |
420 |
325 |
420 |
||
|
工作台孔径(mm) Worktable aperture (mm) |
70 |
120 |
100 |
120 |
70 |
||
|
插齿刀轴心线至工作台轴心线距离(mm) The distance between the axial line of pinion cutter and the axis of worktable (mm) |
-55-175 |
-110-265 |
-110-300 |
||||
|
机床主轴端面至工作台面距离(mm) Distance between spindle end and worktable of machine tool (mm) |
240-335 |
190-280 |
185-275 |
235-365 |
155-285 |
190-320 |
140-270 |
|
工作台可倾斜角度 Tilt angle of worktable |
- |
±12。 |
- |
±12。 |
- |
12。 |
|
|
圆周进给量(mm/str) Circumferential feed rate (mm/str) |
0-2 0.075-2 0-2 0.075-2 |
||||||
|
径向进给(mm/min) Radial feed (mm/min) |
0-1000 |
||||||
|
机床总功率(kw) Total power of machine tool (kw) |
13.3 |
15.2 |
13.3 |
15.2 |
7.5 |
||
|
机床重量(kg) Weight of machine tool (kg) |
9000 11000 8000 |
||||||
